Hospital Grade NEMA 6-20 Power Cords
Hospital Grade Power Cords - Hospital Grade Green Dot Power Cords
Medical Grade Power Cords

Hospital Grade NEMA 6-20 Hospital Grade Power Cords

Specification Data: Hospital Grade Power Cords

Plug StandardNEMA 6-20 Plug Hospital Grade Power Cords, Green Dot, UL 498, CSAHospital Grade Power Cords
Connector StandardsIEC 60320 (320) C-13, C-19, C-5, C-15, Unterminated
Cordage StandardsSJTO, SJT, SJTOW Hospital Grade Power Cord Cordage
Conductor Size / Rating18 AWG @ 10-Amp, 16 AWG @ 13-Amp, 14 AWG @ 15-Amp, 12 AWG @ 20-Amp
MaterialPVC, Jacket Color Black, Gray Temperature 60C & 105C, Hospital Grade
Conductor Color CodeBlack, White, Green (3 wire)
Jacket O.D. (Approx.)18 AWG = .31, 16 AWG = .34, 14 AWG = .37, 12 AWG = .445
Substances ComplianceREACH, RoHS Compliant

Power Cord Notes: Hospital Grade Power Cords, Hospital Grade Green Dot Power Cords, and Medical Grade Power Cords available in custom lengths and shielded versions. Hospital Grade plug and connector color options available. Left or right angle Hospital Grade power cord IEC 60320 C-13, C-19 available on some Hospital Grade power cords.

Hospital Grade NEMA 6-20 Hospital Grade Power Cords NEMA 6-20 Hospital Grade Power Cords Hospital Grade NEMA 6-20 Hospital Grade Power Cord

Hospital Grade Power Cords, Green Dot Medical Grade Power Cords to IEC 60320 Straight C-13 Connector
15 Amp - NEMA 6-20, Hospital Grade
~ Click Part Number for approvals, specifications and print. ~

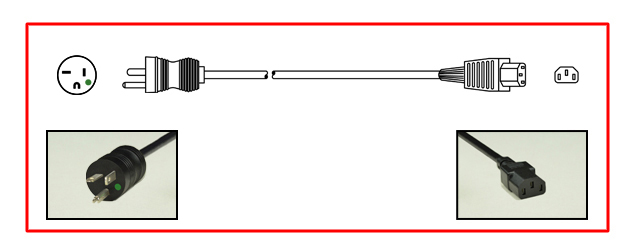

Hospital Grade NEMA 6-20 plug to straight C-13 connector - Hospital Grade Power Cord
Hospital Grade Power Cords
NEMA 6-20P       Hospital Grade       IEC 60320 C-13
Hospital Grade Power Cords with C-13 Connector,
Cordage - 14/3 AWG - 105 C
Part No.Rating DescriptionLength
82534 Hospital Grade
Green Dot
15A 250V AC
14/3 AWG Cordage
Black Plug & Connector,
Black Cordage
10 ft

Hospital Grade Power Cords, Green Dot Medical Grade Power Cords to IEC 60320 Straight C-19 Connector
20 Amp - NEMA 6-20, Hospital Grade
~ Click Part Number for approvals, specifications and print. ~

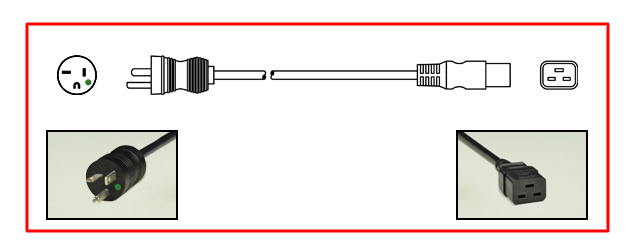

Hospital Grade NEMA 6-20 plug to straight C-19 connector - Hospital Grade Power Cord
Hospital Grade Power Cords
NEMA 6-20P       Hospital Grade       IEC 60320 C-19
Hospital Grade Power Cords with C-19 Connector,
Cordage - 12/3 AWG - 105 C
Part No.Rating DescriptionLength
82535 Hospital Grade
Green Dot
20A 250V AC
12/3 AWG Cordage
Black Plug & Connector,
Black Cordage
10 ft

Hospital Grade Power Cords, Green Dot Medical Grade Power Cords to Unterminated Cord End
20 Amp - NEMA 6-20, Hospital Grade
~ Click Part Number for approvals, specifications and print. ~

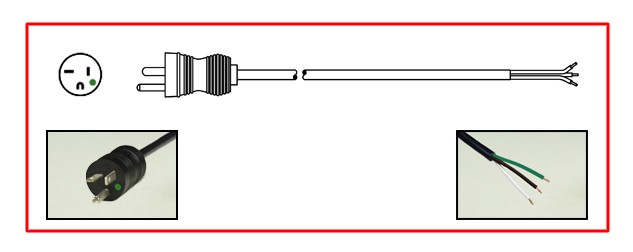

Hospital Grade Power Cord - Hospital Grade NEMA 6-20 plug to Unterminated End
Hospital Grade Power Cords
NEMA 6-20P       Hospital Grade       Unterminated
Hospital Grade Power Cords,
Cordage - 12/3 AWG - 105 C
Part No.Rating DescriptionLength
82540 Hospital Grade
Green Dot
20A 250V AC
12/3 AWG Cordage
Black Plug,
Black Cordage
10 ft
     NEMA 620, 10 amp, 15 amp, 20 amp 250 volt hospital grade power cords. Hospital grade power cords, frequently referred to as Green Dot Hospital grade power cords, are produced in the NEMA 620 plug configuration. Hospital grade power cords have to meet highest quality UL and CSA testing standards and therefore, after passing stringent test procedures, achieve a hospital grade use approval mark indicating acceptable for use into Hospital and medical areas. The green dot hospital grade approval mark on the power cord plug signifies approved for use in hospitals, medical centers, patient care areas and medical treatment facilities. Hospital grade Green dot power cords are produced with various connector ends to easily connect to and power up hospital equipment. Hospital grade power cord connector end type examples we produce are IEC 60320 C-13, C-19, C-7, C-5, C-15, C-13 locking, C-19 locking or alternatively unterminated cord ends are available for direct hard wire applications. Molded Hospital grade approved power cords are available in many color options to match OEM hospital equipment colors. Hospital grade power cord color choices include plugs and connectors molded in clear, gray, black or white. Clear hospital plugs are a popular choice because it allows for a visual inspection of the internal contact connections at all times. Clear hospital grade power cord plugs are not mandatory and all gray, black, white plugs are just as suitable for medical and hospital equipment. Hospital grade power cords adhere to mandatory testing procedures and certification requirements for use in the USA North America. The hospital grade plug design shape is significantly larger than normal power cords. The increased plug size and shape offers more insulation protection for the user while handling the plug. The plugs electrical contact pin blades are a solid blade construction. The solid pin blade construction provides a surface that resists wear and will hold up to constant plugging and unplugging while moving hospital equipment. Internally, inside the hospital grade plug, the cordage to pin contact construction is designed for increased durability and extra retention. Hospital grade power cords must meet higher UL and CSA pull force retention requirements to hold up to frequent use. Another hospital grade power cord plug feature that provides durability is the U shaped ground pin. The U shaped ground pin design is strong and resists bending. Hospital Grade power cords we produce are made with four AWG cordage options. 18 AWG 10 amp rated cordage, 16 AWG 13 amp rated cordage, 14 AWG 15 amp rated cordage and 12 AWG 20 amp rated cordage. Hospital grade power cord labels can be added. Hospital grade power cord label example is "GROUNDING RELIABILITY CAN ONLY BE ACHIEVED WHEN THIS EQUIPMENT IS CONNECTED TO A RECEPTACLE MARKED HOSPITAL GRADE." These labels are made of materials to resist removal, wear and tear.
